vocum SERIES TECHNICAL SPECIFICATIONS SET UP
Audio Compatibility
Audio Input Compatibility
Studio Vocum loudspeakers support both analogue and digital audio input formats. The following input types are available:
Analogue: XLR, RCA
Digital: AES/EBU, S/PDIF
These input options provide versatile connectivity for a wide range of audio systems.
Power Requirements
The loudspeakers are equipped with an automatic switching power supply to ensure global mains voltage compatibility.Power input is provided through a standard IEC power cable (included).
Note: No additional audio cabling is supplied with this product.
External Media Sources
Media playback requires an external media streamer or wireless audio adapter (not supplied). A designated compartment is provided at the rear of the enclosure to accommodate third-party streaming devices that meet the space requirements. Studio Vocum does not manufacture or supply media streamers.

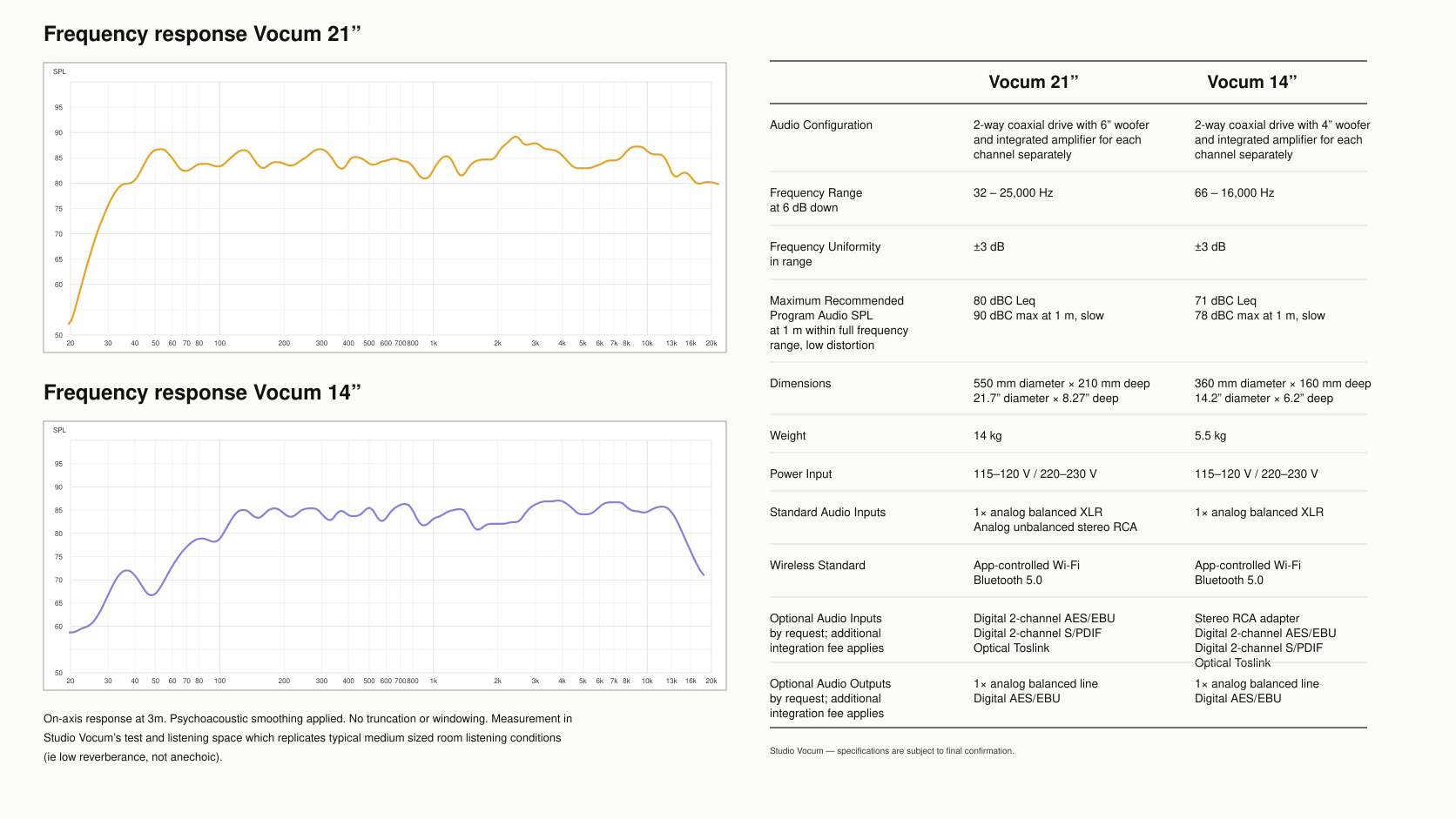

Low-Frequency Performance
Studio Vocum loudspeakers deliver bass response down to 30 Hz under typical room conditions. The use of a subwoofer is optional. A dedicated “Thru Out” connection is provided for users who wish to integrate an external subwoofer.
Signal Configuration
Each loudspeaker can operate with either a mono or stereo signal. Stereo configuration may be achieved by:
Supplying separate mono channels to each loudspeaker, or
Sending a stereo signal to one loudspeaker and linking to the second unit via the optical output connection.
Wireless Audio Support
For wireless playback (e.g., Bluetooth®, SONOS®), users may install a compatible wireless adapter (not supplied). Space is provided within the rear compartment to accommodate such devices. Users may select their preferred streaming technology based on system requirements.
vocum SERIES TECHNICAL SPECIFICATIONS CONFIGURATION
Audio Compatibility
External Media Sources
Media playback requires an external media streamer or wireless audio adapter (not supplied). A designated compartment is provided at the rear of the enclosure to accommodate third-party streaming devices that meet the space requirements. Studio Vocum does not manufacture or supply media streamers.
Low-Frequency Performance
Studio Vocum loudspeakers deliver bass response down to 30 Hz under typical room conditions. The use of a subwoofer is optional. A dedicated “Thru Out” connection is provided for users who wish to integrate an external subwoofer.
Signal Configuration
Each loudspeaker can operate with either a mono or stereo signal. Stereo configuration may be achieved by:Supplying separate mono channels to each loudspeaker, or sending a stereo signal to one loudspeaker and linking to the second unit via the optical output connection.
Wireless Audio Support
For wireless playback (e.g., Bluetooth®, SONOS®), users may install a compatible wireless adapter (not supplied). Space is provided within the rear compartment to accommodate such devices. Users may select their preferred streaming technology based on system requirements.
